CF 5-way Cross

CF 5-way Cross

  • Material:Stainless Steel
  • Grade:SS304L
  • Customized Available
  • Product description: CF 5-way Cross,5 Way Corss,Customized Available
  • INQUIRY

CF 5-way Cross,5 Way Corss,Customized Available

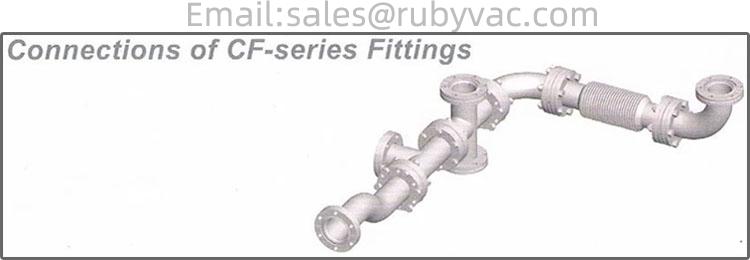

ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out.

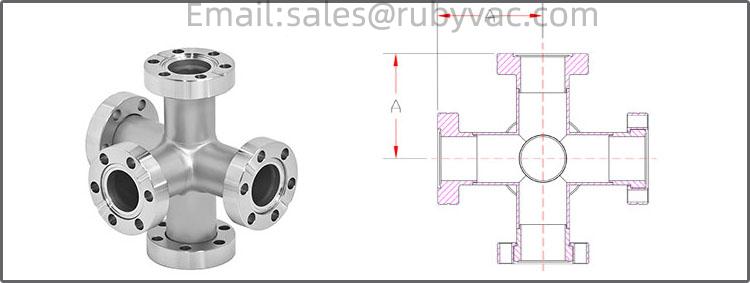

Item A(mm) Material
CF16 38.1mm SS304L
CF25 52mm SS304L
CF35 62.48mm SS304L
CF50 81.79mm SS304L
CF63 63.5mm SS304L
CF100 101.6mm SS304L
CF160 152.4mm SS304L
