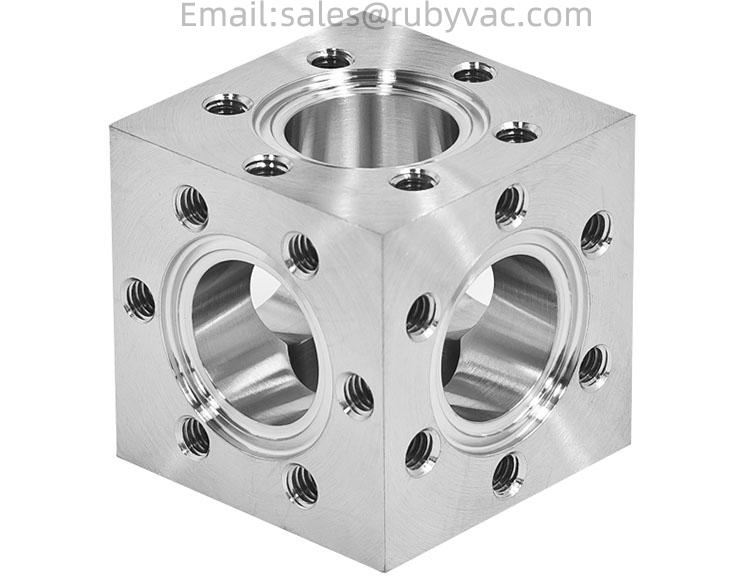

6-Way Cubes

6-Way Cubes

  • Material:Stainless Steel
  • Grade:SS304L
  • Customized Available
  • Product description: 6-Way Cubes,CF 6-Way Cubes,Customized Available
  • INQUIRY

6-Way Cubes,CF 6-Way Cubes,Customized Available

ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 1x10-10 torr and can be heated to 450°C for bake-out.

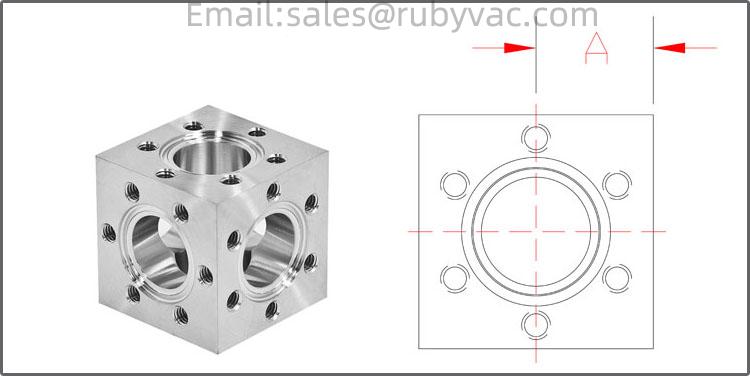

Item Bore(mm) Thread Size A(mm)
CF16 15.75mm #8-32
17.02mm
CF35 39.88mm 1/4-28
35.05mm
CF50 50.8mm 5/16-24
42.67mm
CF63 63.5mm 5/16-24
57.15mm
CF100 101.6mm
5/16-24
76.2mm
CF160
152.4mm 5/16-24
101.6mm
CF200 203.2mm 5/16-24
127mm
