Home > CF Cross

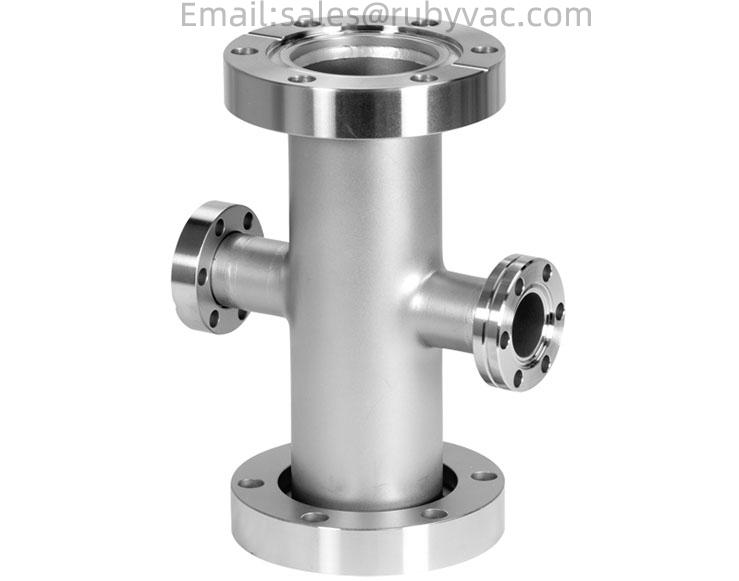

CF Four-way Reducer Cross,CF Reducer Cross,CF 4 way Reducing Cross,Customized Available
ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out.

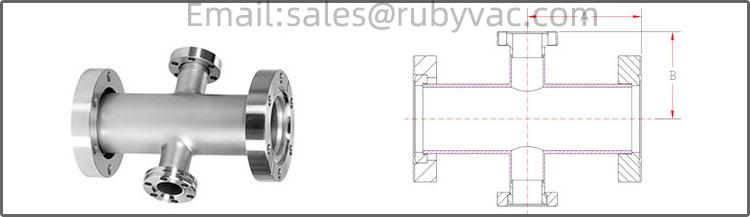

| Item | Tube O.D.(small) |
Tube O.D.(Large) |
A(mm) | B(mm) |
| CF35-CF16 | 19mm | 38.1mm | 62.48mm | 47.50mm |
| CF35-CF25 | 25.4mm | 38.1mm | 62.48mm | 58.17mm |
| CF50-CF16 | 19mm | 50.8mm | 81.79mm | 54.10mm |
| CF50-CF35 | 38.1mm | 50.8mm | 81.79mm | 68.83mm |
| CF63-CF35 | 38.1mm | 63.5mm | 85.85mm | 75.18mm |
| CF63-CF50 | 50.8mm | 63.5mm | 85.85mm | 88.39mm |
| CF100-CF35 | 38.1mm | 101.6mm | 109.73mm | 94.23mm |
| CF100-CF50 | 50.8mm | 101.6mm | 109.73mm | 107.44mm |
| CF100-CF63 | 63.5mm | 101.6mm | 109.73mm | 104.9mm |
| CF160-CF100 | 101.6mm | 152.4mm | 139.7mm | 135.13mm |
| CF200-CF160 | 152.4mm | 203.2mm | 190.5mm | 165.1mm |
