CF Blank Flange

CF Blank Flange

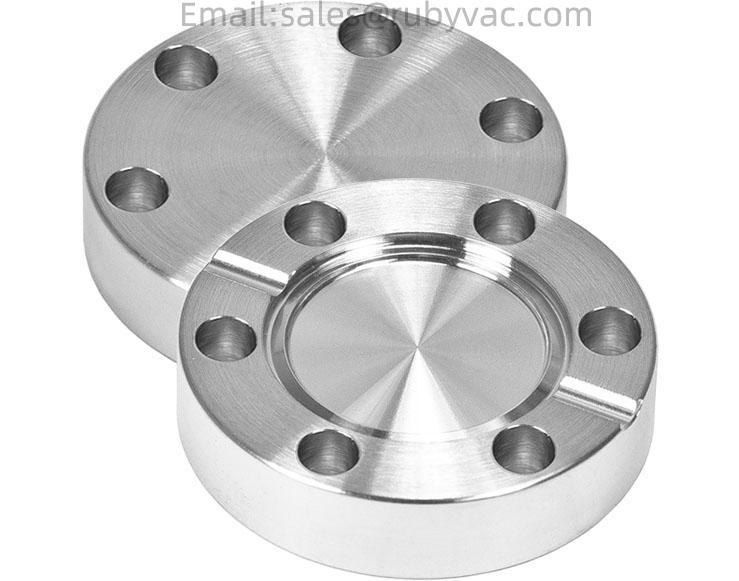

  • Name:CF16-350 Blank Flange Nonrotatable With Tapped Bolt Holes
  • Material:Stainless Steel
  • Standard:ISO 9001:2015
  • Grade:SUS304L, SUS316L
  • Product description: CF Blank Flange Nonrotatable
  • INQUIRY

CF Blank Flange Nonrotatable,CF Blank Flange Nonrotatable With Tapped Bolt

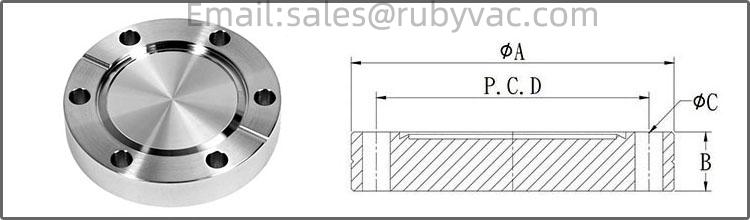

Item Material A(mm) B(mm) C(mm) P.C.D
CF16
SS304 33.8mm 7.5mm 4.4*6 26.9mm
CF35
SS304 69.9mm 12.7mm 6.7*6 58.7mm
CF63
SS304 114.3mm 18mm 8.4*8 92.1mm
CF100
SS304 152.4mm 20mm 8.4*16 130.3mm
CF150
SS304 203.2mm 22mm 8.4*20 181mm
CF200
SS304 254mm 24.7mm 8.4*24 231.8mm
CF250
SS304 304.8mm 28.5mm 8.4*32 284mm
CF275
SS304 336.6mm 28.5mm 10.3*30 306.5mm
CF300
SS304 355.6mm 28.5mm 10.3*30 325.7mm
CF350
SS304 419.1mm 28.5mm 10.3*36 388.9mm
