Home > CF Blank Flange

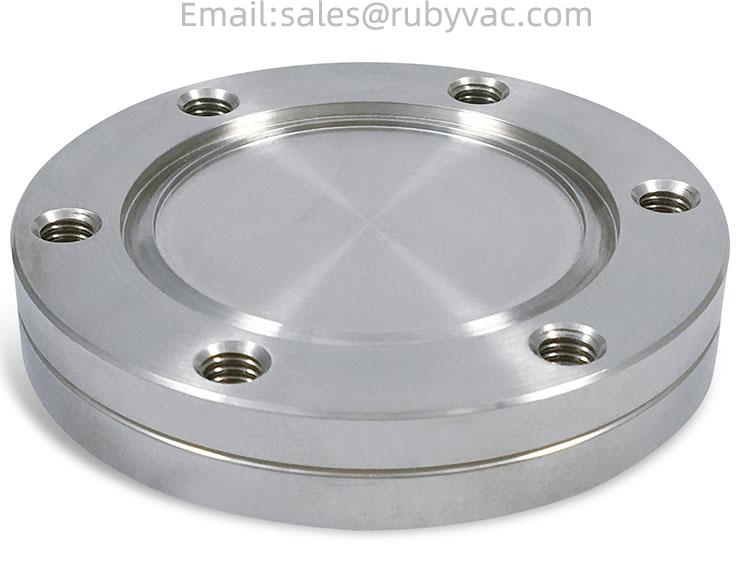

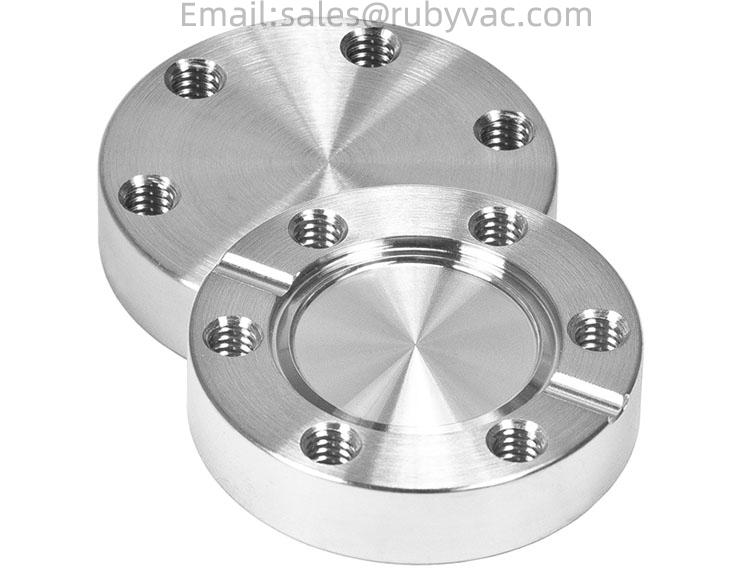

CF Blank Flange Nonrotatable With Tapped Bolt

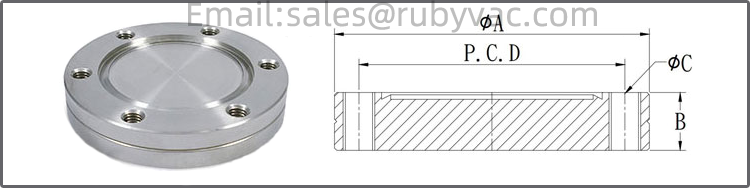

Item
Material
A(mm)
B(mm)
C(mm)
P.C.D(mm)
CF16
SS304
33.8mm
7.5mm
M4*6
26.9mm
CF35
SS304
69.9mm
12.7mm
M6*6
58.7mm
CF63
SS304
114.3mm
18mm
M8*8
92.1mm
CF100
SS304
152.4mm
20mm
M8*16
130.3mm
CF150
SS304
203.2mm
22mm
M8*20
181mm
CF200
SS304
254mm
24.7mm
M8*24
231.8mm
CF250
SS304
304.8mm
28.5mm
M8*32
284mm
CF275
SS304
336.6mm
28.5mm
M10*30
306.5mm
CF300
SS304
355.6mm
28.5mm
M10*30
325.7mm
CF300
SS304
419.1mm
28.5mm
M10*36
388.9mm
