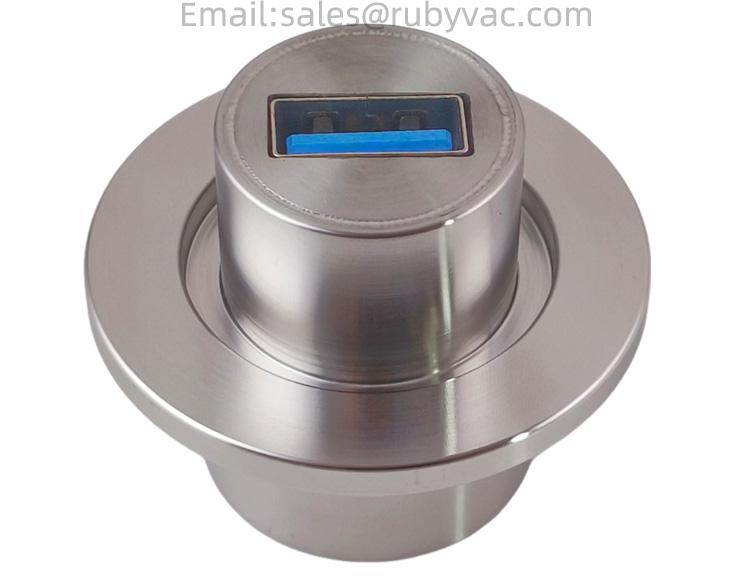

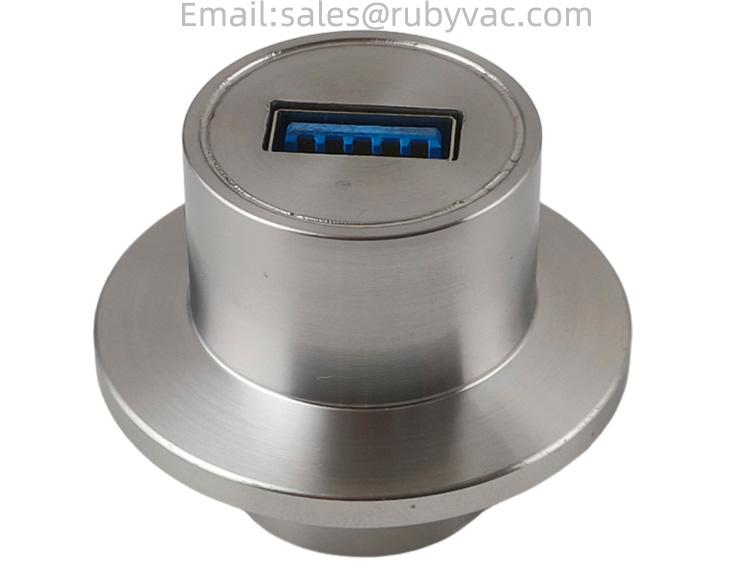

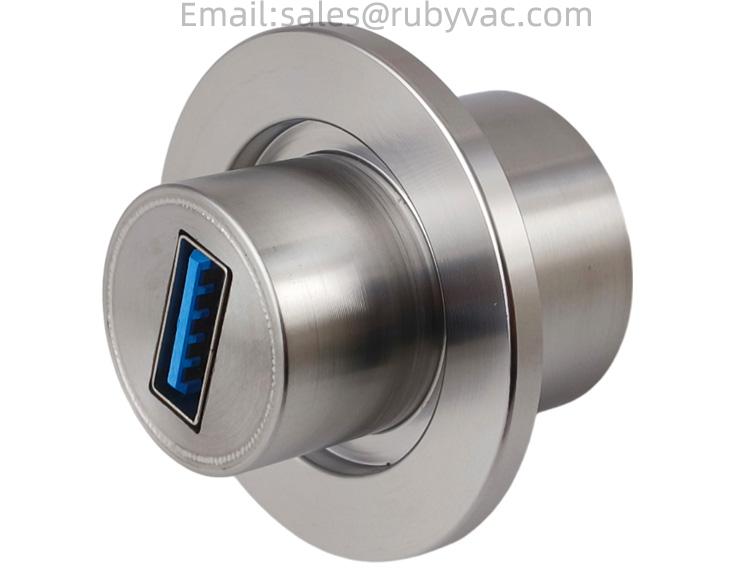

KF25 Flange with USB3.0 Feedthroughs Female to Female Welding Version

USB3.0 Vacuum Feedthroughs,KF25 USB3.0 Vacuum Feedthroughs,KF25 USB3.0 Vacuum Feedthroughs,Female to Male

KF25 USB3.0 Vacuum Feedthroughs,

KF40 USB3.0 Vacuum Feedthroughs with one port USB3.0,

KF50 USB3.0 Vacuum Feedthroughs with one port USB3.0,

USB3.0(Female to Female)

Jack interface: USB3.0 TYPE-A (Female To Female)

Transmission speed: >200MB/s

Base material: SUS304

Contact material: copper alloy gold-plated Rated

Current (maximum): 1A (25 ℃)

Atmospheric withstand voltage: 500VAC (1min)

Vacuum leakage rate: less than 1 * 10^-9 Pa * m³/s

 Working temperature range: -20~100 ℃

Product Video Display:https://youtu.be/--4AFqVEa5o
