CF Flexible Bellow,CF Bellow,CF Vacuum Bellow

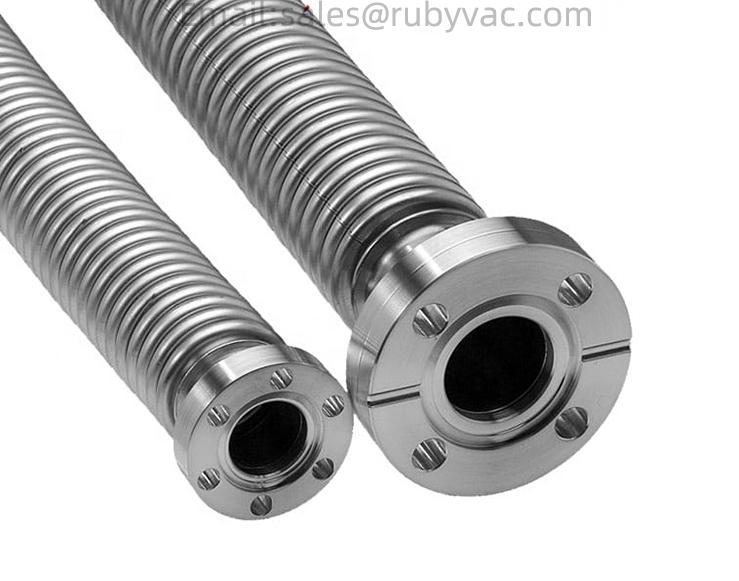

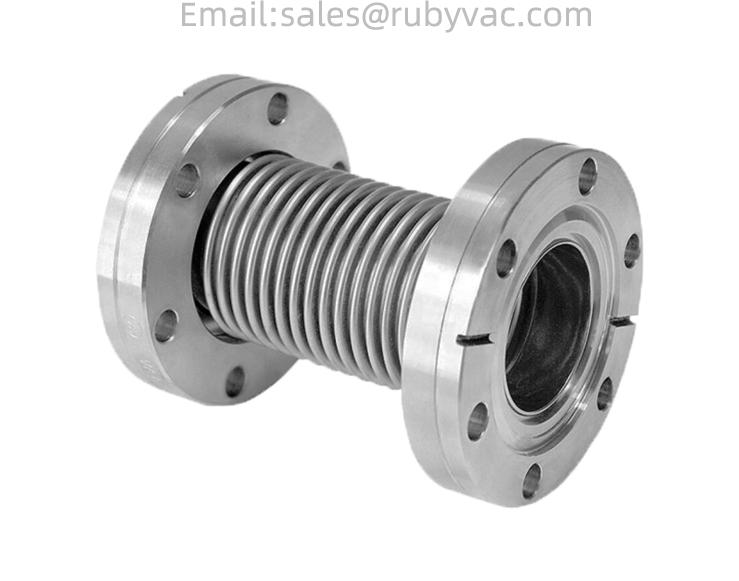

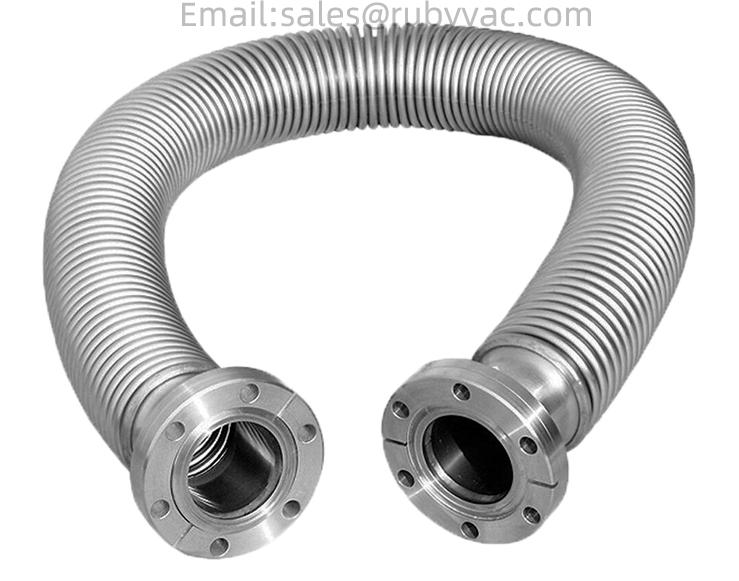

These Flex Coupling Hose Non-Braid flexible coupling vacuum fittings have one rotatable and one fixed. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out.

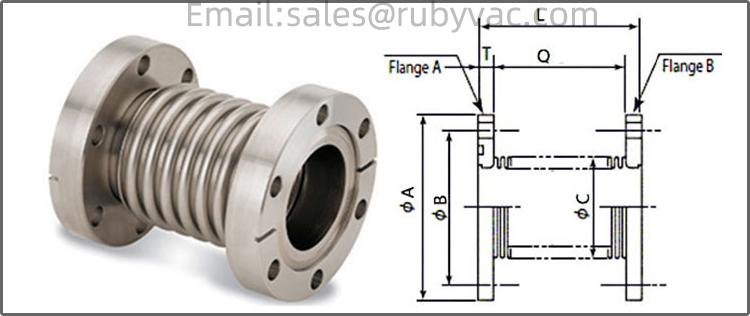

| Item | A(mm) | B(mm) | C(mm) | L(mm) |
| CF16 | 34mm | 24mm | 19.1mm | 50-1000 |
| CF25 | 54mm | 43mm | 25.4mm | 50-1000 |
| CF35 | 70mm | 58.7mm | 38.1mm | 50-1000 |
| CF50 | 86mm | 72.4mm | 50.5mm | 50-1000 |
| CF63 | 114mm | 92mm | 63.5mm | 50-1000 |
| CF80 | 130mm | 110mm | 80.5mm | 50-1000 |
| CF100 | 152mm | 130.3mm | 101.6mm | 50-1000 |
| CF150 | 202mm | 181mm | 152mm | 50-1000 |
| CF200 | 253mm | 231.8mm | 202mm | 50-1000 |
| CF250 | 305mm | 284mm | 252mm | 50-1000 |
| CF300 | 355.6mm | 325.7mm | 302mm | 50-1000 |
| CF350 | 419.1mm | 388.9mm | 353mm | 50-1000 |
